Lenses

Until you understand the reference, “spectacle” lenses for M-series Leicas are a rich source of confusion. Are they for spectacle wearers? And why (when you see a picture) do the lenses themselves appear to be wearing spectacles?

To make life still more interesting, there are two separate reasons why some Leica lenses have “spectacles,” and better still, some of the “spectacle” lenses are indeed better for wearers of spectacles—though that wasn’t why they were designed. Now read on.

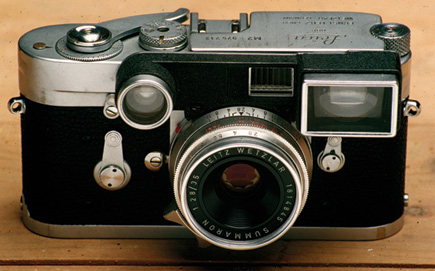

“Spectacles” Summaron. Although the 35mm f/2.8 Summaron doesn’t need spectacles on an M2, some people still prefer them because they use the 50mm frame in the viewfinder which makes it easier when you’re, um, wearing spectacles. With an M3, of course, it’s essential (or you need a separate finder).

An M-series Leica has a series of fixed frame lines corresponding to different focal lengths. On the latest Leicas, these are shown in pairs: 28-90, 35-135, 50-75. On the classic M2 they were 35-50-90 and on the classic M3 they were 50-90-135.

If you want to use a 35mm lens on an M3, therefore, you require a separate viewfinder. Or alternatively, you can use a “spectacles” 35mm lens. The “spectacles” are nothing more (or less) than an adapter for the viewfinder to increase the field of view: the 50mm frame of an M3 immediately corresponds to the field of view of a 35mm lens.

One half of the “spectacles” covers the viewfinder window, obviously, but slightly less obviously you also need another lens over the small rangefinder window or the rangefinder would, to put it mildly, be rather difficult to use because one image would be bigger than the other. Several 35mm Leica lenses were made in “spectacles” form: Summaron, Summicron, and Summilux.

You paid extra for the “spectacles,” of course: about 15 percent. This was actually cheaper than buying a separate finder, though: less than half the price, and it was one less fiddly little bit to lose. Understandably, therefore, “spectacles” 35mm lenses sold pretty well.

You can use them equally well on an M2 (or any other Leica) and still use the 50mm frame for the 35mm lens, and this is where the advantage to spectacle wearers comes in. Spectacles—the sort you wear on your face—can make it hard to get your eye close enough to the viewfinder to see the outer frame: in the case of an M2, therefore, the (unmodified) 35mm frame. But with the “spectacles” lens, the 50mm frame becomes the 35mm frame, and therefore easier to see.

Elmarit-M 135mm f/2.8. With an M3, which doesn’t have a 135mm frame (the longest is 90mm) you’d need the spectacles anyway, quite apart from the extra precision in focusing that you get from the magnified rangefinder base.

You might think that similar arguments would apply to a 135mm lens on an M2, but actually, this is only half the story—or possibly, 1/3 of it. Yes, the “spectacles” in this case allow you to use a 135mm lens on a camera where the longest lens for which there is a viewfinder frame is 90mm. But a moment’s thought will show that the 90mm frame is easy enough to see anyway with any Leica, so the “spectacles” can’t make it easier to see.

Or can they? The 135mm frame on any Leica is pretty small, and obviously, making it bigger makes it easier to use—even with an M3. This is the second reason for its existence. But there is still more to it than this.

Only one 135mm lens was ever offered in “spectacles” form, the 135mm f/2.8 Elmarit-M, and a 135mm f/2.8 is right at the limit of what most photographers can easily focus with a split-image rangefinder. If you magnify the rangefinder base, of course, you make the rangefinder easier to use. This is the third reason (or the other reason, if you discount the frame magnification) why the 135mm f/2.8 needed “spectacles,” even with an M3: it was never made in non-“spectacle” form.

This is a delightful lens with superb performance, but I have to confess that I sold mine a couple of years ago because I almost never used it: a 135mm lens just isn’t very convenient on a rangefinder camera. I sometimes wish I still had it but then I remember what an inconvenient lump it was to pack (which was why I so seldom used it) and I can understand why Leica dropped it in favor of the 135mm f/3.4 Elmarit-M: simpler, cheaper, more compact, and only half a stop slower.
